The bell and the mouthpiece

Neither end is touched by the way a bore turns, so only the tube belongs to an instrument. Both ends are stacks of laminated 3mm rings, both close onto the same 10mm square in a 16mm face, and every bore in this repository is on that channel — so one bell and one mouthpiece serve all of them.

They were kept inside one instrument's folder from 2026-08-31 to 2026-09-02, on the grounds that nothing else cut them. That was true of what had been cut and false of what fits, and it hid two general parts inside one design. They live in ../parts/ now.

The bell

17 rings of 9mm, 153mm tall, a 10mm square throat opening to a ø86mm round rim — ø80 of air. The section morphs square to round on the way up while holding area, so the bore never steps in cross-section even though the shape of it changes completely.

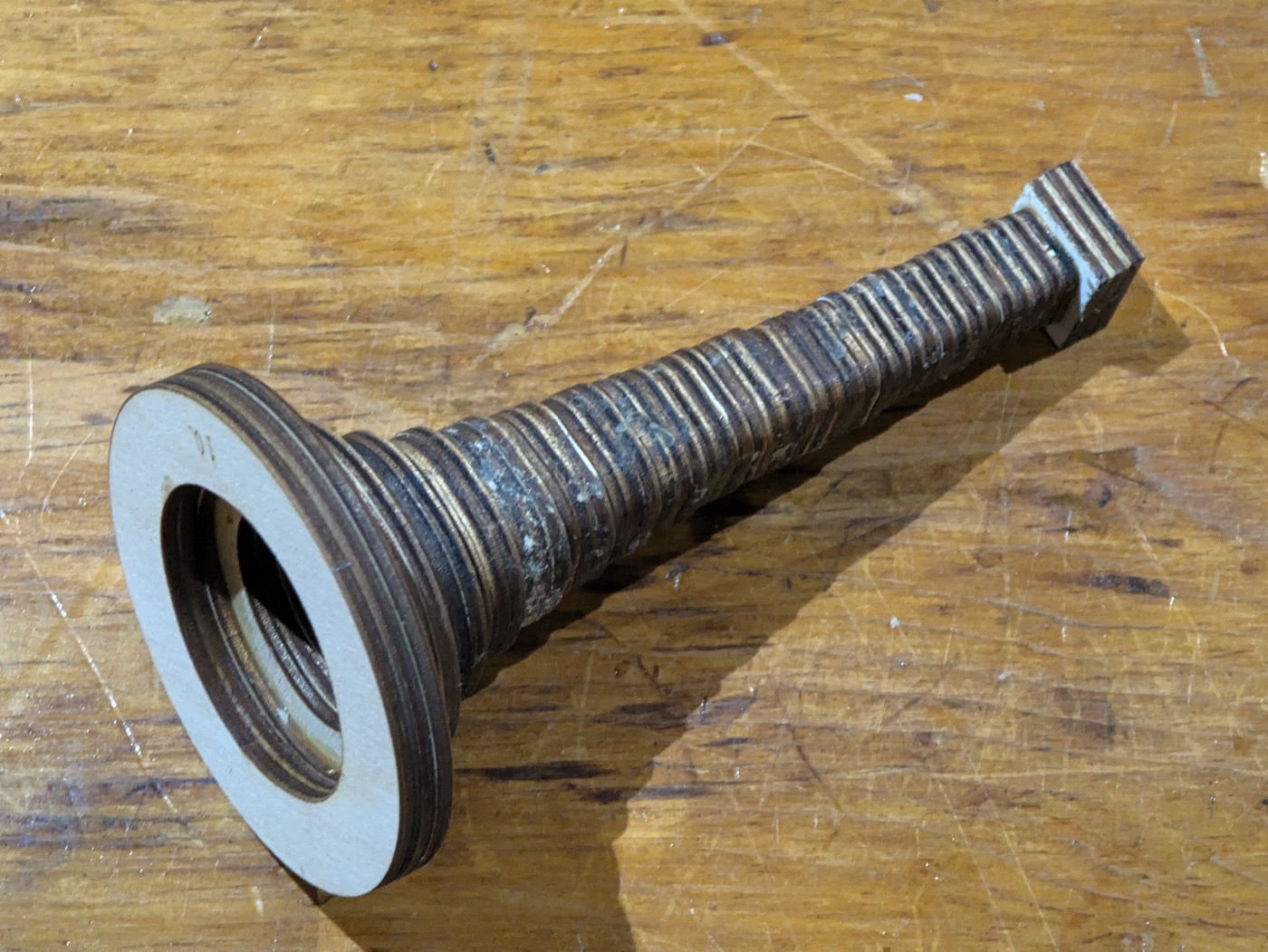

That is the one on the instrument. The small square block is the throat — 10mm of air in a 16mm face, which is a bore block exactly — and the flat disc is the rim. Everything between them is the section changing from square to round while holding area, three plies at a time.

Turn it → The viewer is a page of its own: drag to rotate, and the slider stacks the rings one at a time, which is the useful part.

The bell is cut more than once. The sheet draws every ring once, and the x3 in its filename is how many passes it takes. Cut it once and you get a 51mm stub instead of a 153mm bell.

Rings stack; they do not telescope. Each seats on the one below over 3.0mm per side. They are engraved in hex with 0 at the bore, and the generator writes the numbering itself as the last step, with an orientation tick beside each number — a numbering failure deletes the sheet rather than leaving an unnumbered one to be cut.

cd parts/bell && python3 bell-round.py 17 --bore=10 --length=152 --mouth=80 \
    --out=cut-files/bell-round10-153mm-17rings-x3-rim86-cut-files.svg

A bare bell-round.py writes four ring budgets, not one; the shipped sheet is among them and comes back identical, the other three are scratch. Pass a budget to write one.

The adapter

A swept-curve bore leaves its cheek through a 7 × 14mm port, not a 10mm square, so it cannot meet this bell directly. bell-adapter.py draws the piece that carries one into the other: 7 rings of one ply, 21mm, holding area across the change on a smoothstep so both ends are tangent. The last ring is a collar — 10mm square in a 16mm square face, which is the bore's own end face, so the bell stacks on it unchanged.

cd parts/bell && python3 bell-adapter.py \
    --out=cut-files/bell-adapter-port7x14-to-bore10-7rings-x1-cut-files.svg

The mouthpiece

30 rings of 3mm, 90mm tall. A 16mm square plate at the instrument and a ø23mm rim at the lip — ø17 where the lip actually sits — narrowing to a ø3.66mm throat before the backbore. Full size on a quarter-size instrument, which is the point of it.

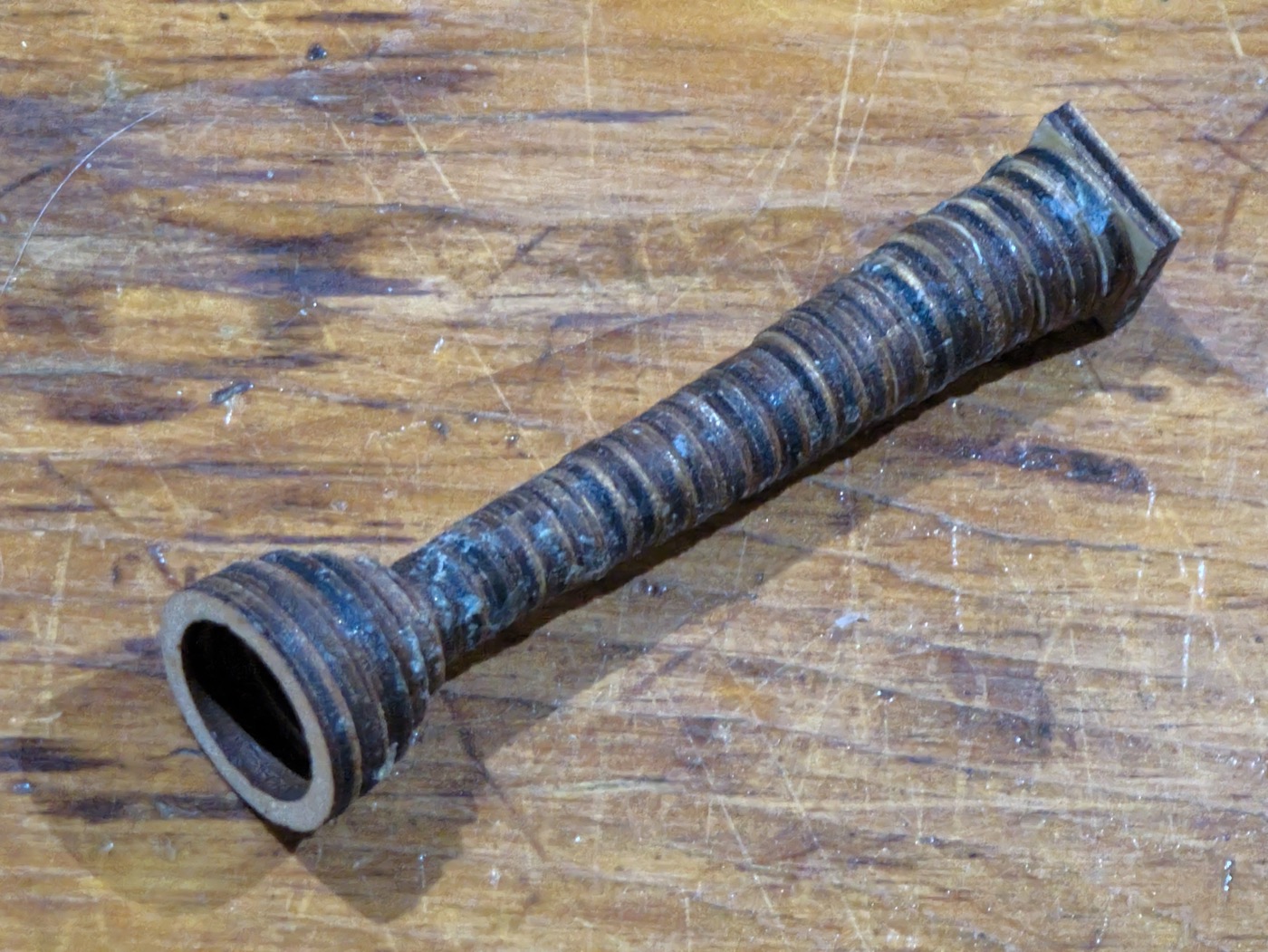

The square block is what meets the bore; the cup is what meets the lip, and the waist between them is the throat. The staircase in that photograph is the thing to sand. Every ring is a 3mm step, and the rim is the one part of the instrument a player feels directly.

Turn it → Again a page of its own, and again the slider stacks it a ring at a time.

Station one is a sharp 10mm square aperture in a sharp 16mm square plate, matching the bore corner for corner. The corners round away going up, and the section is a true circle from the 9.026mm station on, so the throat and the whole cup are round.

cd parts/mouthpiece && python3 mouthpiece-round.py \
    cut-files/mouthpiece-bore10-trumpet-parts-cut-files.svg

Sand and fill the staircase and round the rim over before you put a lip to it. Thirty 3mm rings make a 90mm cone out of thirty steps, and the lip is the one part of this instrument that can feel every one of them.

The mouthpiece on the instrument that has been built is 24 rings, 72mm — not the 30 this sheet cuts. It is the instrument that is short, not the drawing.

Every sheet is claimed

Both directories carry a .repro manifest naming the exact command that draws each shipped SVG, checked by repro-svg.py. Nothing ran these eleven generators at all until 2026-09-10: the block bores had two byte gates and the ribbon sheets a third, and the one thing that did touch these directories checked the preview against the cut file rather than the cut file against the code. So a sheet on disk could have been one the current code would no longer draw, with every gate still green. The adapter was found exactly that way — reported UNCLAIMED three days after it was added.

The bores these fit

the three-turn trumpet — the one they are actually glued to — and the candidates: the coiled trumpet · the switchback trumpet · the greek spiral, plus every other bore in ../parts/bore/, all of them on the same 10mm channel.

More, and licence

The trumpet writeup — the idea, the notation, the gate, and the whole library.

The rest of the build files — every instrument, each with its own writeup.

Released under CC0 1.0.
